Home-grown engineering is full of practical and versatile inventions, but there are tools that go unnoticed despite their enormous potential. Here we will show you a multifunction tool, which can completely transform the way you perform welding, cutting, and assembly work.

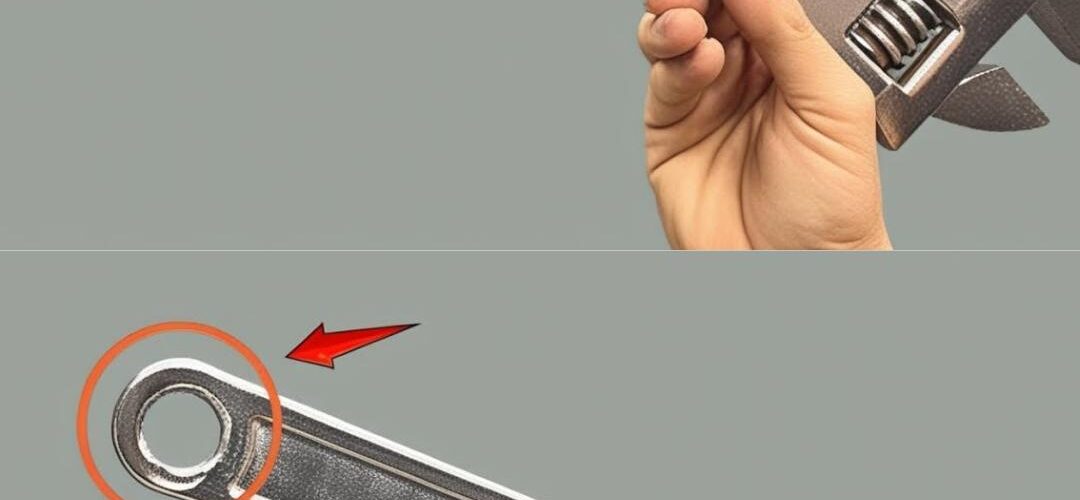

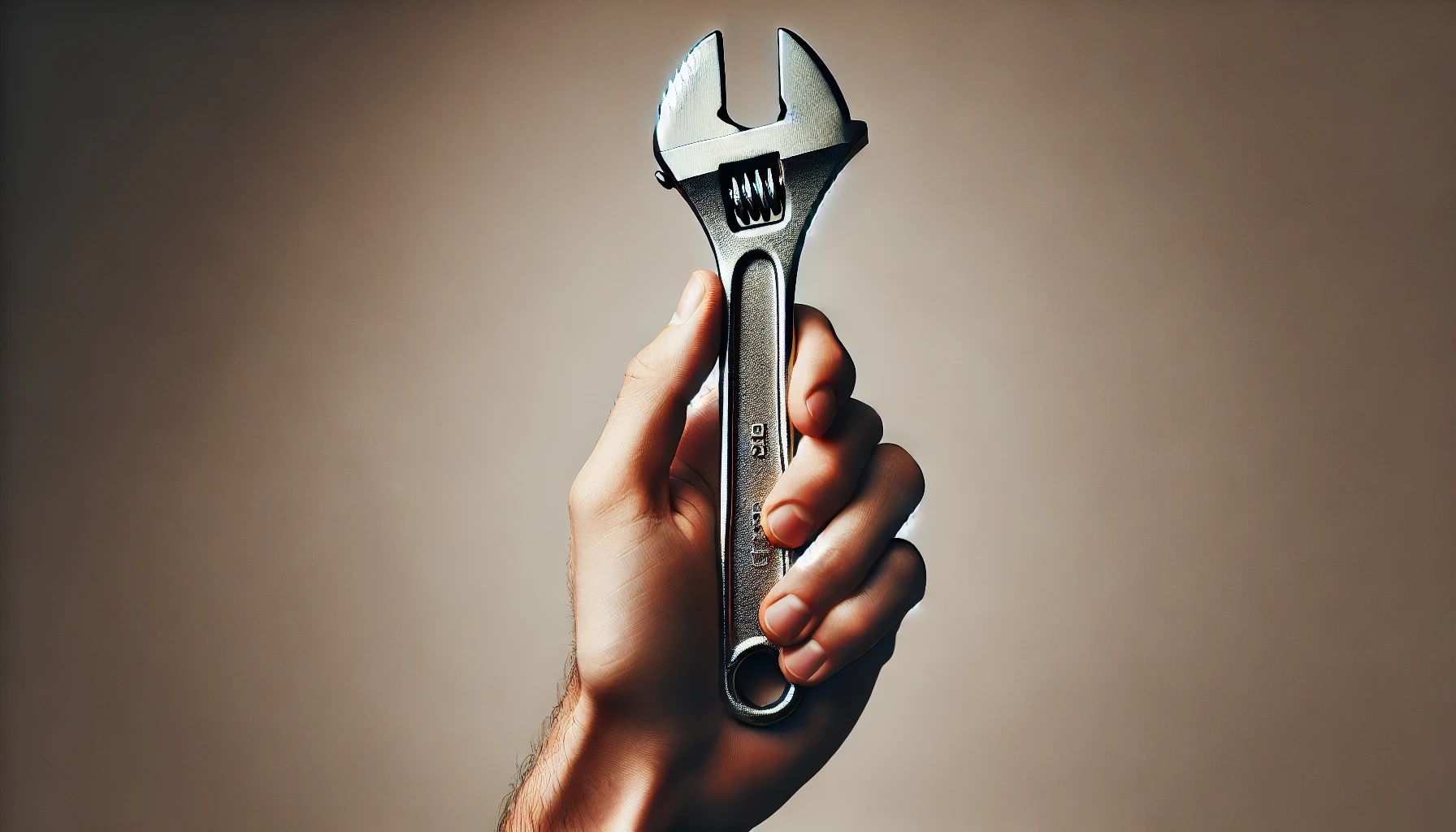

This tool does not require large investments, just creativity, precision and the desire to do things by yourself. It involves using an adjustable wrench, also known as an adjustable wrench, which has been modified to fulfill multiple practical functions beyond its traditional use. Check out this video made by WELD VTQ:
How to Make a Multifunction Tool
Main Components of the Tool
- Steel plates cut into a rectangular shape
- Steel bolts and nuts
- Metal hinges
- Angle supports
- Wooden or metal base for fixing
- Recycled metal tubes (optional)
Main functions of this tool
1. Angle Cutting Guide
- Allows metal parts to be firmly held at different angles.
- Ensures straight and precise cuts with a grinder or disc saw.
- Ideal for welded metal structures.
2. Bracket for square welding
- It makes it easy to keep parts aligned at 90° during the welding process.
- Reduces the risk of error due to movement or vibration.
3. Adjustable vise
- Acts as a portable mini vise.
- Allows fixing parts for filing, drilling or assembly.
4. Quick Assembly Template
- Accelerates the assembly of symmetrical structures.
- It can be disassembled and adjusted according to the size of the pieces.
Tips for its construction and use
- Use spot or continuous welding to join the metal plates together.
- Pre-mark drill holes with a punch for accuracy.
- Apply anti-corrosion to metal parts to prolong their lifespan.
- You can adapt the tool according to your needs: adjust the hinges, change the size of the plates or include new fasteners.
- Practice with scrap parts first to adjust angles and pressures before using them in real jobs.
This tool not only improves the accuracy of your DIY projects, but also optimizes time and reduces errors. It’s a versatile resource that, although simple, can make a big difference in the quality of your homemade creations.
